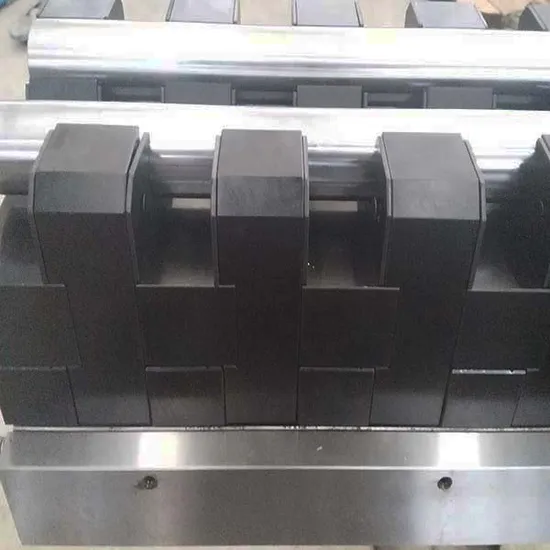

Adjustable PRESS BRAKE DIE
| Model Number | Press Brake Die |
| Material | 42Crmo |
| Hardness | 57-60HRC |
| Size | According to customer requirement |
| Thickness | According to customer requirement |
| Quality Control | Computer quality control system |
| Certificate | ISO9001:2008 and ISO14000,CE |
| Deliver time | 3-7 days |
| Package | Wooden case |
| Supply for | Hydraulic Press Brake |
| Customer | More than 50 countries |
| Service Center | More than 20 countries |
| Sample | Can supply |
Application
Convenient bending of various sheet thicknesses in a single set-up. The die widths can be adjusted as per the request of a customer quickly and easily using setting bars.
Area of application
VLMBN: 3 - 15 mm sheet thickness (max. 1250 kN/m).
VLMDN: 5 - 20 mm sheet thickness (max. 2000 kN/m).
Advantages
Wide die width range from W24 - W182 possible. Continuous die replacement is thus not required.
Reduced-imprint bending of rotating and hardened track rollers (minimum wear)
Lower press forces required.
Production of various bending radii.
Decrease in the down times by up to 30% through the fast and easy replacement of the setting bars.
Minimum maintenance costs: - Replaceable track rollers. - Replaceable protective foil protecting the die parts against contamination. Low collision contour compared to the conventional adjustable dies.
