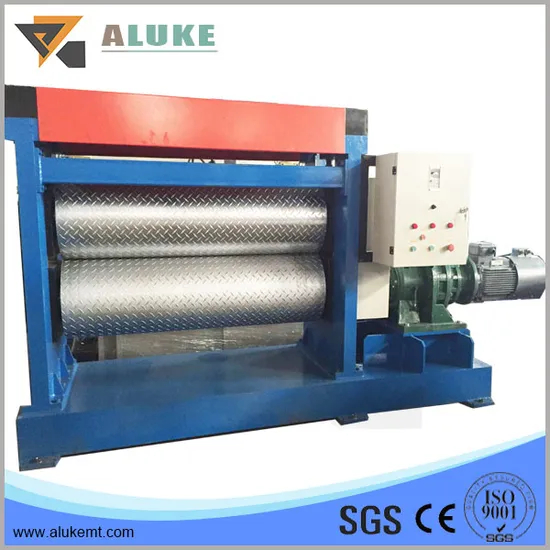

Our company specialized in designing and making metal sheet embossing machinery,there are many kinds of ALK series of embossing machines which are suitable to you.
The embossing machine suitable for aluminum, colorful steel sheet, heat zinc plated sheet, copper sheet, cold rolling steel sheet, stainless steel sheet, and so on.
The patterns can designed according to customers' requirements.
The main parameters:
1. Roller specification: Φ380-450×1000-1600mm;
2. Roller Material: superior alloy steel(China Code 60CrMo) forged roller;
3. Roller intermediate frequency quenching, hardness: HRC58-62;
4. Roller Pattern: diamond effect, Stucco Pattern, bark, wood grain, and so on.
5. Way of embossing:
The male and female rollers press each other up and down;
6. The way of controlling the pattern depth:
ALK-J TYPE control by turbine screw reducer
ALK-S TYPE control by screw bolts;
7. Transmission: gear transmission;
8. Motor: 15Kw frequency motor,cycloid pinwheel reducer;
9. Embossing speed: 0-13m/min, control by frequency converter;
10. The machine installation safety cover;
11.Suitable for plate: Steel sheet, Aluminum sheet, Colourful steel sheet, Colourful aluminum sheet, Galvanized sheet, Stainless steel sheet...
12.Guarantee period: One year
| 1 | Roller Specs | Φ380-450×1000-1600mm |
| 2 | Embossing Pattern | Diamond effect, Stucco Pattern, Bark, Wood grain and so on. |
| 3 | Embossing Plate | Aluminum, Colorful steel sheet,Heat zinc plated sheet,Copper sheet,Cold rolling steel sheet, Stainless steel sheet and so on. |
| 4 | Roller Material | 60CrMnMo |
| 5 | Embossying method | Up and Down concaved roller |
| 6 | Pressure adjust | Hand Wheel/ Screw Bolts/Hydraulic Station |
| 7 | Drive method | Gear driving |
| 8 | Power supply | 380V,50HZ or Customized |
| 9 | Wire Speed | 0-18 M/Minute |
| 10 | Max.Thickness of Process Material | 0-6mm |
