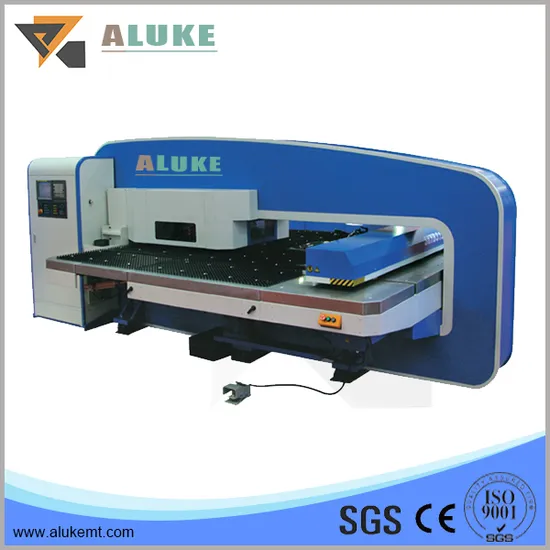

The Perfect Hydraulic CNC Turret Punching Machine

Customization:	Available
Type:	High-Speed Punching Machine
Punch Shape:	Closed Punch

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

ALUKE

Slider Movement

Double Action

Slider Drive Mechanism

Cam Press

Controlling Mode

CNC

Automatic Grade

Automatic

Power Source

Hydraulic Pressure

Precision

High Precision

Certification

GS, CE, RoHS, ISO 9001

Condition

New

Punching Pressure

25t

Working Table Size

1250X2550

Working Material

Metal Plate

Package

Wooden Package

Transport Package

Steel Tray

Specification

International Standard

Trademark

ALUKE

Origin

China

HS Code

846210

Production Capacity

80 Sets/Month

Product Description

CNC TURRET PUNCH PRESS

Main functions and characteristics
1. Dealing with multitasks by the system in real time controlling.
2. Easily operate menu and the toolbar with friendship surface.
3. Loading program by graph menu or toolbar for choice.
4. Showing state of operating manner, punch, coordinate of workpiece, rate of punching.
5. Auto-programming by AutoCAD and performing the processing program.
6. Programming with code of ISO NC standard.
7. Editing, rewriting and saving the program.
8. Code of nesting, circulation, and other assistant function.
9. Showing self- diagnosis of the failure.
10. Code explaining, executing, grammar checking and simulation of punching.
11. Following graph and showing the process of punching in time.
12. Super parameter setting.
13. Freely choosing or changing coordinate system of track.
14. Feeding frame the drift by the control of the software.
15. Running by the manner of increment, high and low speed.
16. Counting and the zero clearing a bit.
17. Easily orient the plate material.
18. With the function of returning the start place automatically.
19. With the function of pre-disposal figure.

Technical specification	unit	ALK TP-24
Punching press	T	25
Number of stations	_ _	24
Max part- dimension	mm	2500× 1250
Max. plate' s thickness	mm	5
Hole dia and plate' s thickness	mm	50.8(δ ≤ 2.9); 31.75(δ ≤ 4.5)
Pace accuracy	mm	± 0.1
Punch speed	h/min	140
Max. one punching dia	mm	Φ 88.9
Max. moving-speed of table	m/min	32
Number of manipulative axis	_ _	3
Power	v/w	440/7200
Max. workpiece weight	kg	117
Over all dimensions (length/width/height)	mm	4900× 3200× 2200
Machine weight	T	9.7
Main ordonnance	_ _	AC servo motor Industrial controlling Computer LCD color displayer Precision screws liner guider
Optional	_ _	Punching tool Assistant workpiece
