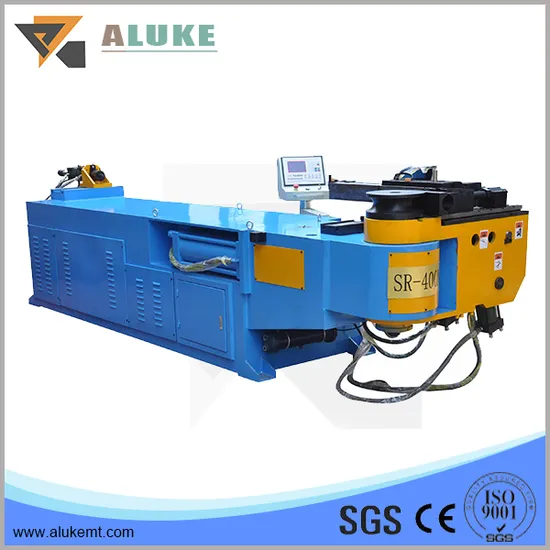

CNC High Speed Tube Bending Machine for Metal Sheet

Customization:	Available
Condition:	New
Certification:	CE, ISO 9001:2000, ISO 9001:2008, EPA

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

DW63NC

Automation

Automatic

Type

Pipe and Tube Bending Machine

Max Bending Capability

63×3

Max Bending Radius

R350

Min Bending Radius

According to Pipe Diameter

Working Material

Metal Pipe

Application

Machinery & Hardware, Medical, Beverage

Type for Pipe and Tube Bending Machine

Digital Pipe Bender

Transport Package

Wooden Case

Specification

CE Standard

Trademark

ALUKE

Origin

China

HS Code

8462

Production Capacity

120 Set/Month

Product Description

CNC Tube Bending Machine

I. Model and Name
1.1 Model: DW63NC
1.2 Name:pipe bending machine

II.Product Description
DW63NC high performance single-head hydraulic pipe bending machine, NC control, multi-groups program and multi-angles setting, makes your operation easy and convenient, widely used in blast pipe, furniture and other metal pipes processing.

III.Characters:
1. Operate by NC, imported electric and hydraulic elements.
2. English showing and conversational operation.
3. It can adjust speed in each bend and the bending precision is high
4.16 groups of bending information can be stored. Multiple angles can be finished once.
5. The foot switches with functions of automatic start, emergency stop and resuming.
The safety is high.
6. Delicate design of the bending head makes the bending space large.
7. Suitable Materials: steel pipe, stainless steel pipe, copper pipe, aluminum pipe and others.

Specification/Model	Unit	DW63NC	Remark
Max bending capability	mm	Φ63×3	1. The Minimum bending diameter based on the pipe diameter 2.The Max bending diameter can according to the customer's requirement 3.The Max length of mandrel can according to customer's requirement
Max bending radius	mm	R350
Min bending radius	mm	According to pipe diameter
Max bending angle	Degree	190
Max effective distance of mandrel	mm	2200
Control System		NC Control
Max elbow bend pipe	Unit	16
Max storable sections	Unit	16×16
Motor power	KW	5.5
Max. Hydraulic Pressure	Mpa	12
Hydraulic System Control		Electromagnetic Valve
Measurement	mm	3000×700×1200
Weight of Machine	Kg	1500
