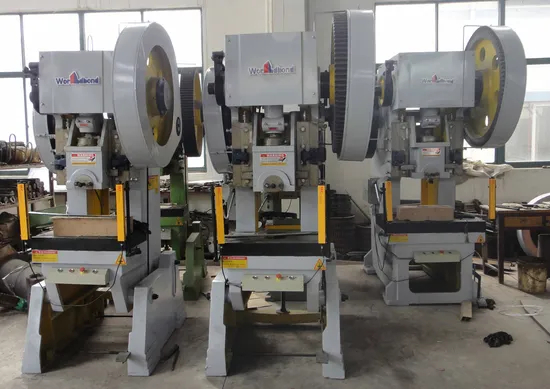

The body of J23 series press is made of high-strength cast iron. The slipper uses V-type guide rail and turnkey rigid clutch. There is a crushing-type protector mounted on the slipper, which may protect the whole machine as it overloads. Operation of electrical equipment is controlled by button or footswitch. The electrical equipment may carry out single and continuous operation.
The machine may be altered to pneumatic operation according to needs of clients. Body of the machine may be inclined to a certain angle to let the workpiece slide down by its deadweight at the back of the machine. The machine has the advantages of high versatility, reliable performance and easy operation.
The main technical parameters
MM | Unit |
| J23-40 | J23-63 | J23-100 | J23-160 |
| Nominal Force | kN | 400 | 630 | 1000 | 1600 |
| Stroke of nominal force | mm | 5 | 6 | 9 | 8 |
| Stroke of sliding block | mm | 60 | 120 | 130 | 145 |
| Number of strokes | Min-1 | 122 | 50 | 45 | 38 |
| MAX. height for die loading | mm | 240 | 270 | 380 | 420 |
| Adjustment range for die loading height | mm | 80 | 90 | 100 | 100 |
| Distance between slipper centre and machine | mm | 240 | 260 | 280 | 395 |
| Space between columns | mm | 300 | 360 | 380 | 550 |
| MAX. inclnes angle of machine body | degree | 30 | 25 | 20 | 13 |
| Bottom size of sliding block | Front-back | mm | 270 | 280 | 270 | 410 |
| Left-right | mm | 320 | 320 | 360 | 500 |
| Hole size for die handle | Diameter | mm | 50 | 50 | 60 | 60 |
| Depth | mm | 70 | 80 | 80 | 85 |
| Size of worktable | Front-back | mm | 460 | 480 | 540 | 780 |
| Left-right | mm | 700 | 710 | 840 | 1250 |
| Blank-holding hole | mm | 150 | 180 | 250 | 280 |
| Thickness | mm | 80 | 90 | 100 | 120 |
| Motor | Power | KW | 4 | 5.5 | 7.5 | 15 |
