Combined Punch and Shearing Machine with TUV ISO CE Certification

Customization:	Available
Type:	High-Speed Punching Machine
Punch Shape:	Semi-Open Punch

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

Q35Y-40

Slider Movement

Double Action

Slider Drive Mechanism

Crank Press

Controlling Mode

CNC

Automatic Grade

Automatic

Power Source

Hydraulic Pressure

Precision

High Precision

Certification

GS, CE, ISO 9001

Condition

New

Process Material

Metal Plate

Function

Punching

Function B

Bending

System

Hydraulic

Transport Package

Wooden CAS

Specification

Q35Y-20

Trademark

ALUKE

Origin

China

HS Code

846249000

Production Capacity

180 Sets/Month

Product Description

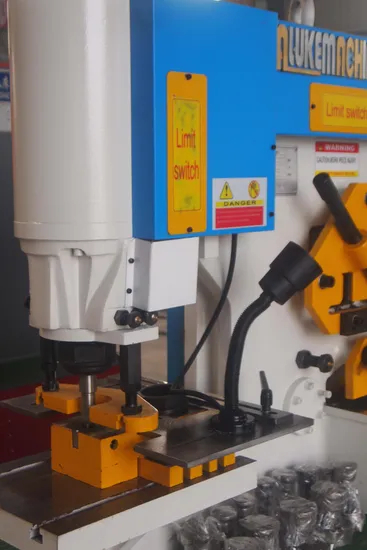

Hydraulic Combined Punching and Shearing Machine

Accessories

1. A pair of round hole punching die
2. A set of angle steel blade
3. A set of square and round bar blade
4. A set of shearing plate blade
5. A set of notching blade
The above punching and moulds will be installed in the machine.
For other dies and blades, customers need to order and pay additionally.

Package: Wooden Case

Deliver time: 10 days after getting deposit.

Sales Network:Over world

MODEL	Q35Y-16	Q35Y-20	Q35Y-25	Q35Y-30
PRESSURE ( T )	66	90	120	165
MAX THICKNESS OF PLATE ( MM )	16	20	25	30
CUTTING ANGEL	7 °	8 °	8 °	8 °
CUTTING SIZE IN A HIT (T × Wmm)	16×250 8×400	20×330 10×480	25×330 16×600	30×335 20×600
RAM STROKE	80	80	80	80
H IT /MIN	8	8	6	6
THROAT DEPTH(MM)	300	355	400	600
MAX PUNCH THICKNESS ( MM )	16	20	25	26
MAX PUNCH DIMETER ( MM )	25	30	35	38
MAIN MOTOR POWER ( KW)	4	5.5	7.5	11
DIMENSION(MM)	1640×730×1770	1860×800×1900	2355×960×2090	2680×1040×2300
MACHINE WEIGHT (KG)	1600	2400	4800	6800
