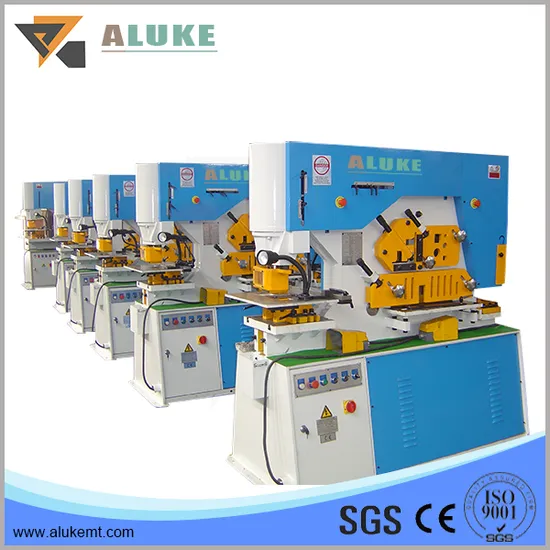

Hydraulic Combined Punch and Shear Machine

Customization:	Available
Condition:	New
Certification:	CE, RoHS, ISO 9001:2000, ISO 9001:2008, EPA, CS

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

Q35Y-30

Automation

Automatic

Process Material

Metal Plate

Function

Punching

Function B

Bending

System

Hydraulic

Application

Machinery & Hardware, Medical, Apparel

Type for Cutting Machine

CNC Cutting Machine

Type for Fold-bending Machine

Hydraulic Fold-bend Machine

Type for Pipe and Tube Bending Machine

Digital Pipe Bender

Type

Iron Bending Machine

Transport Package

Wooden CAS

Specification

Q35Y-20

Trademark

ALUKE

Origin

China

HS Code

846249000

Production Capacity

180 Sets/Month

Product Description

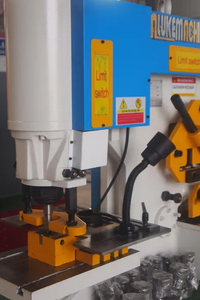

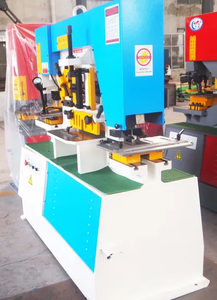

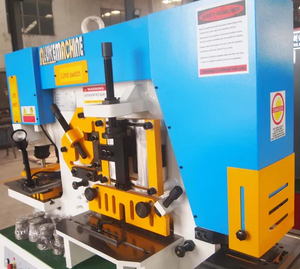

Hydraulic Combined Punching and Shearing Machine

Accessories

1. A pair of round hole punching die
2. A set of angle steel blade
3. A set of square and round bar blade
4. A set of shearing plate blade
5. A set of notching blade
The above punching and moulds will be installed in the machine.
For other dies and blades, customers need to order and pay additionally.

Package: Wooden Case

Deliver time: 10 days after getting deposit.

Sales Network:Over world

MODEL	Q35Y-16	Q35Y-20	Q35Y-25	Q35Y-30
PRESSURE ( T )	66	90	120	165
MAX THICKNESS OF PLATE ( MM )	16	20	25	30
CUTTING ANGEL	7 °	8 °	8 °	8 °
CUTTING SIZE IN A HIT (T × Wmm)	16×250 8×400	20×330 10×480	25×330 16×600	30×335 20×600
RAM STROKE	80	80	80	80
H IT /MIN	8	8	6	6
THROAT DEPTH(MM)	300	355	400	600
MAX PUNCH THICKNESS ( MM )	16	20	25	26
MAX PUNCH DIMETER ( MM )	25	30	35	38
MAIN MOTOR POWER ( KW)	4	5.5	7.5	11
DIMENSION(MM)	1640×730×1770	1860×800×1900	2355×960×2090	2680×1040×2300
MACHINE WEIGHT (KG)	1600	2400	4800	6800
