Combined Punching and Shearing Machine with Quickest Deliver Time

Customization:	Available
Type:	Shearing Machine
Forging Forming Method:	Mold Forging

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

Q35Y-20

Power Source

Hydraulic Pressure

Feature

Automation

Certification

ISO9001, CE

Warranty

12 Months

Customized

Advantage

Use Widely

Condition

New

Process Material

Metal

Transport Package

Wooden Box

Specification

International standard

Trademark

ALUKE

Origin

China

Production Capacity

180 sets/month

Product Description

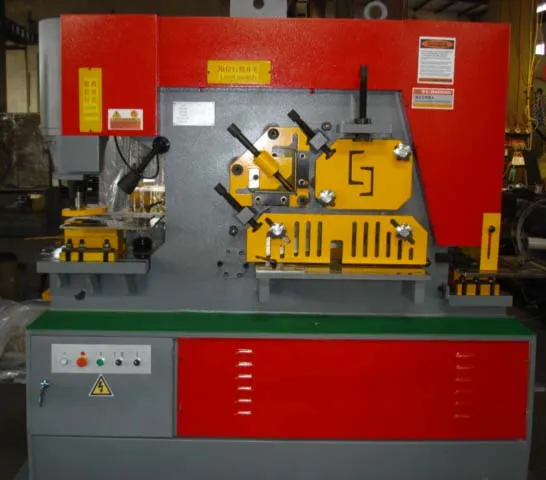

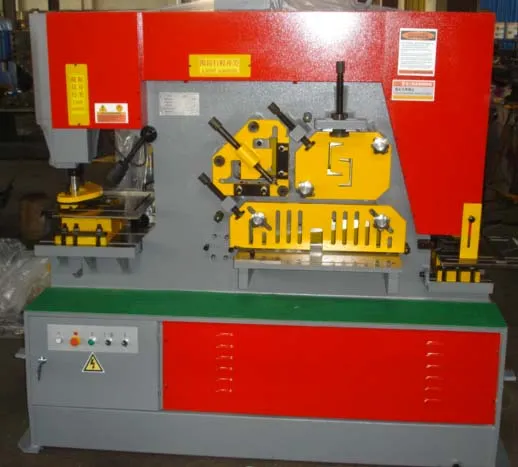

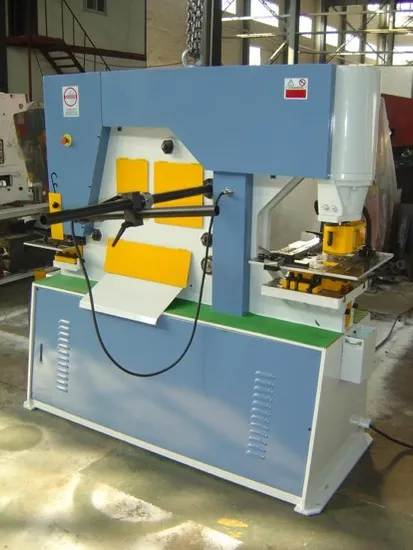

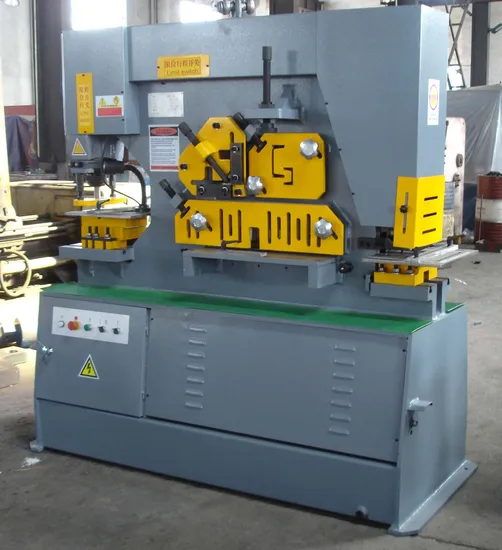

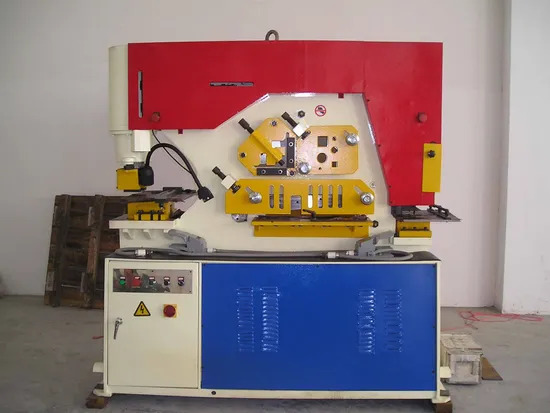

Hydraulic Combined punching and shearing machine

Hydraulic combined punching and shearing machine is a special multifunctional machine combined the functions of punching and shearing. The machine could be used to cut, punch and notch various section metal materials, such as plate, square bar, round bar, angle, channel and I beam. It is also equipped with a back gauge for cutting.

MODEL	Q35Y-16	Q35Y-20	Q35Y-25	Q35Y-30
PRESSURE ( T )	66	90	120	165
MAX THICKNESS OF PLATE ( MM )	16	20	25	30
CUTTING ANGEL	7 °	8 °	8 °	8 °
CUTTING SIZE IN A HIT (T × Wmm)	16×250 8×400	20×330 10×480	25×330 16×600	30×335 20×600
RAM STROKE	80	80	80	80
H IT /MIN	8	8	6	6
THROAT DEPTH(MM)	300	355	400	600
MAX PUNCH THICKNESS ( MM )	16	20	25	26
MAX PUNCH DIMETER ( MM )	25	30	35	38
MAIN MOTOR POWER ( KW)	4	5.5	7.5	11
DIMENSION(MM)	1640×730×1770	1860×800×1900	2355×960×2090	2680×1040×2300
MACHINE WEIGHT (KG)	1600	2400	4800	6800
