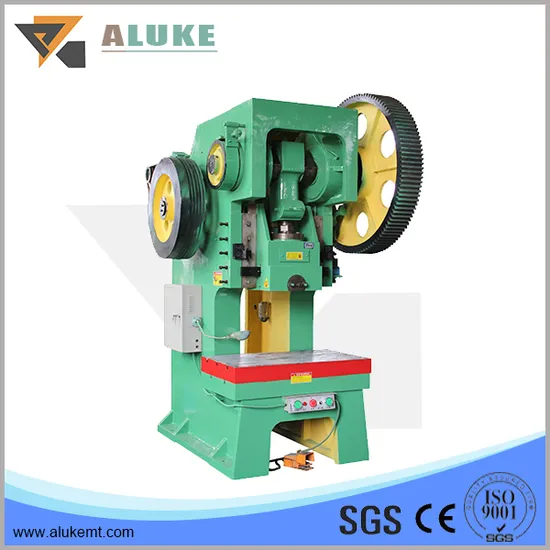

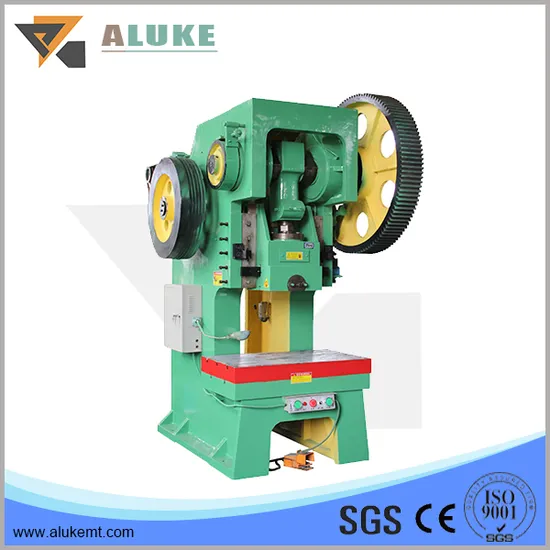

The body of J23 series press is made of high-strength cast iron. The slipper uses V-type guide rail and turnkey rigid clutch. There is a crushing-type protector mounted on the slipper, which may protect the whole machine as it overloads. Operation of electrical equipment is controlled by button or footswitch. The electrical equipment may carry out single and continuous operation.
The machine may be altered to pneumatic operation according to needs of clients. Body of the machine may be inclined to a certain angle to let the workpiece slide down by its deadweight at the back of the machine. The machine has the advantages of high versatility, reliable performance and easy operation.
| Open Tilting Type Press Machine Technical Data-J23 series |
| Technical Data | Unit | J23-160T |
| Nominal pressure | KN | 1600 |
| Nominal pressure stroke | mm | 8 |
| Slipper stroke | mm | 150 |
| Slipper stroke times | min-1 | 65 |
| Max closing height | mm | 390 |
| Connecting rod adjuster | mm | 100 |
| Distance between slipper centre and machine | mm | 800 |
| Work bench dimension | Front & Back | mm | 700 |
| Left & right | mm | 1000 |
| Diameter of blank-holding hole | Front & Back | mm | 200 |
| Left & right | mm | 200 |
| Diameter | mm | 200 |
| Slipper underside bore | Front & Back | mm | 400 |
| Left & right | mm | 370 |
| Size of die handle bore | Diameter | mm | 80 |
| Depth | mm | 80 |
| Pole Distance | mm | 630 |
| Thickness of spacer | mm | 140 |
| Angel of inclination | . | 20 |
| Motor Power | Power | KW | 15 |
| Round speed | r/min | 970 |
| Dimension | Frount & back | mm | 1800 |
| Left & right | mm | 1800 |
| Height | mm | 2800 |
