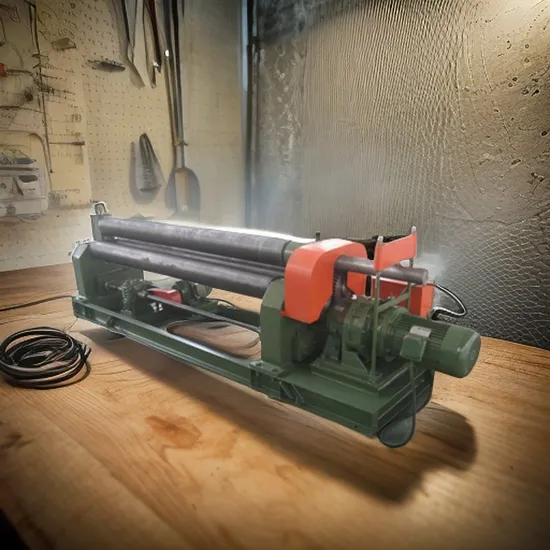

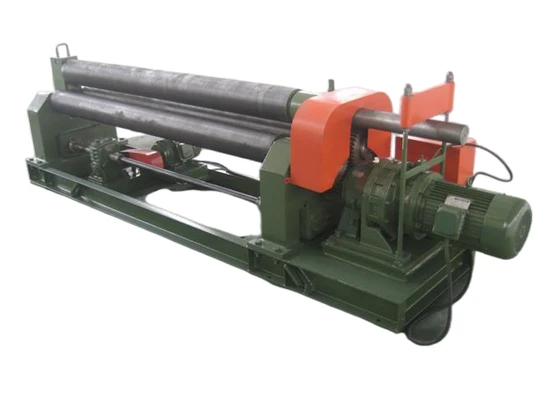

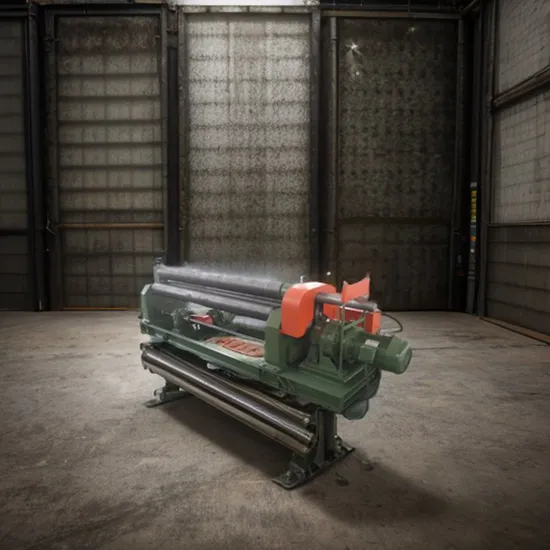

Mechanical Three Roller Rolling Machine (W11 25X3000)

Customization:	Available
Type:	LT Water Tank Type Metal Drawing Machine
Usage:	Metal Bending

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

W11 25X3000

Metal Material

Copper

Outlet Diameter

0.1-1.2mm

Max.Inlet Wire Dia.

22mm

Block Dia.

1200mm

Max. Number of Block

21

Certification

ISO, CE

Condition

New

Thickness:25mm

Width:3000mm

Transport Package

Steel Tray

Specification

International Standard

Trademark

ALUKE

Origin

China

HS Code

846229

Production Capacity

100 Sets/ Month

Product Description

Introducing the W11 Symmetry 3-Roller Rolling Machine - a masterpiece of engineering excellence by Shanghai Aluke Equipment Co., Ltd. This sophisticated machine is designed to transform metal plates of various thicknesses into precisely shaped workpieces such as pipes, arcs, and more. Its ingenious working principle utilizes revolving motion to achieve seamless rolling, making it an indispensable asset in the manufacturing realms of chemical industries, cement production, boiler fabrication, aviation, irrigation infrastructure, and electric transport tower construction. Elevate your production capabilities with the unparalleled efficiency and precision of our Mechanical Three Roller Rolling Machine (W11 25X3000).

NO	Name of parameter	Unit	Parameters
1	Model and specifications	mm	W11-25X3000
2	Max-thickness for Rolling	mm	25
3	Max-wideness for Rolling	mm	3000
5	The min-diameter while Max-thickness and Max-wideness	mm	900
6	Diameter of up Roll	mm	380
7	Diameter of down Roll	mm	300
8	The distance between the two down-rolls	mm	490
9	Speed for Rolling	M/min	< =4.5
10	The driving style for Rolling		Two down-Roll are driven mechanical
11	Main electric power	kw	37
