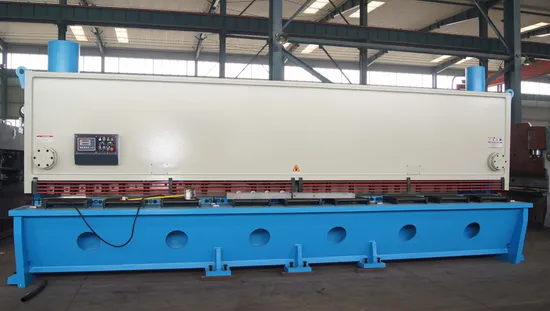

Heavy Duty CNC Cutting Machine

A.Outer Construction
1. Using UG analysis(finite element analysis),Optimize the deign through the computer's assistant.
2 The whole machine is in sheet plate welded structure, with internal stress eliminated by vibration aging technology, high strength and good rigidity of machine.
3.. Mechanical stopper in oil cylinder, typical of high feedback precision for position of gliding block ,accurate and stable operation, good synchronizing performance ,and high repeated positioning precision of gliding block.
4. With Germany skill to avoid inner reaction.
5. The whole frame remove rust by sand paper, with antirust.
B.feature or characteristic.
1. Assistant Tooling Set on work table, make tooling adjustment easier
2. Rolling material support make operation easier
3.Indication by indicator is provided for adjustment of blade clearance, for a handy and prompt adjustment.
4.The adoption of four-side edge shearing blade prolongs the service life of blade.
5. Alignment device with lighting and control device for shearing stroke are set, with a handy and prompt adjustment.
6. The rear stopper is fitted with electric adjustment and manual adjustment devices, and digital display device is available for display of size of stopper and times of shearing.
C.Hydraulic system
1.Advanced hydraulic integrated valve block is employed, and the pipeline connection is minimized in a compact structure, typical of excellent rigidity and stability.
2.Forging material System: See Operate Manual
D.Electric control system
1. The electrical component and material meet the international standard, safe and long-lived.
2,The machine is with AC380V,50HZ and the control loop is with AC220V. 24V for Backguage controlling, 6V for indication Light,24V for other component.(According to customer requirements changes)
3. Electric box on left side. The operated buttons are on the machine's button table. The electrical switch, indicator lights are in the electrical case.
E. Front .Backguage
1.Frontgauge:Setting on table, with indicator, adjust stopper.
2.Backguage:Setting on tooling set, swing with up-tooling set, driven by 0.55KW Electric Motor. The rear stopper is fitted with electric adjustment and manual adjustment devices ,and digital display device is available for display of size of stopper and times of shearing.
F.Parts of supply list
