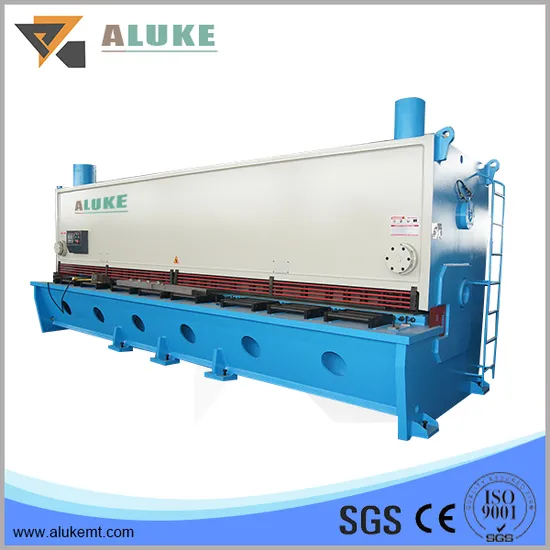

Hydraulic Guillotine Machine
QC11Y 10X6050
| NO. | Item | Count | Unit | Remark |
| 1 | Max cuttable thickness | ≤10 | mm |
|
| 2 | Max cuttable width | 6050 | mm |
|
| 3 | Tensile strength of steel plate to be cut | ≤450 | N/mm2 |
|
| 4 | Shear angle | 2 °30′ | / |
|
| 5 | Throat Depth | 150 | mm |
|
| 6 | Max distance of backgauge | 1000 | mm |
|
| 7 | Strokes | 8 | n/min |
|
| 8 | Distance between upright columns | 6265 | mm |
|
| 9 | Length of the blade | 6150 | mm |
|
| 10 | Distance between workbench and ground | 800 | mm |
|
| 11 | Primary Motor | power | 22 | KW |
|
| rotation rate | 1440 | r/min |
|
| 12 | Gear pump | model | NBT5-G63F | / |
|
| flow | 63 | L/min |
|
| pressure | 31.5 | Mpa |
|
| 13 | Power | 380V/50Hz/3Phase/(According to customer requirements changes) |
Main Parts
1. Hydraulic system Omega (Sino-American)
2. Packing nnit Japan NOK
3.Oil Pump HONGTING in Shanghai
4.Electric Component SIEMENZ
Feature or characteristic.
1. Assistant Tooling Set on work table, make tooling adjustment easier
2. Rolling material support make operation easier
3.Indication by indicator is provided for adjustment of blade clearance, for a handy and prompt adjustment.
4.The adoption of four-side edge shearing blade prolongs the service life of blade.
5. Alignment device with lighting and control device for shearing stroke are set, with a handy and prompt adjustment.
6. The rear stopper is fitted with electric adjustment and manual adjustment devices, and digital display device is available for display of size of stopper and times of shearing.
