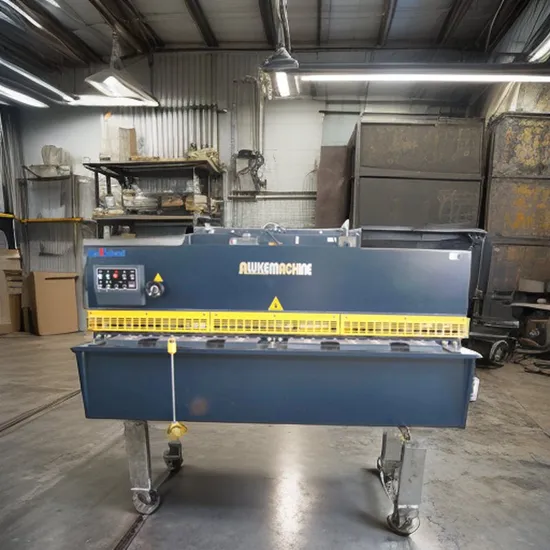

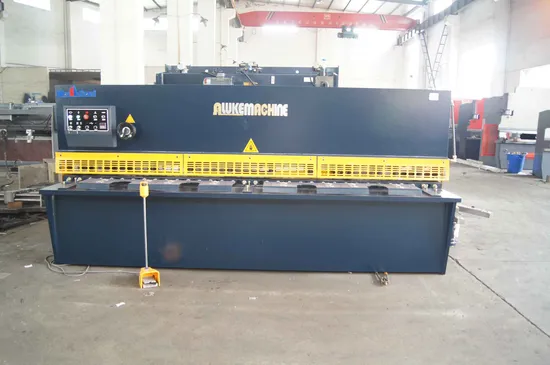

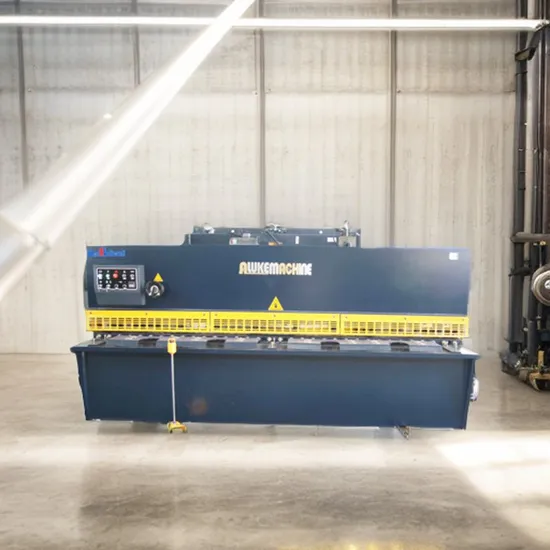

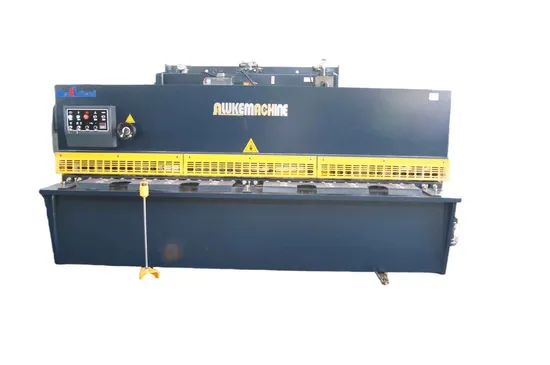

High-Performance Hydraulic Shearing Machine for Sheet Metal Fabrication

Customization:	Available
Certification:	ISO 9001:2008, CE, ISO 9001:2000
Cutting Thickness:25mm:	Width:3200mm

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

QC12Y 25X3200

Application

Machinery & Hardware

Transport Package

Steel Tray

Specification

International Standard

Trademark

ALUKE

Origin

China

HS Code

846239

Production Capacity

120 Sets/ Month

Product Description

A. Outer Construction
1. Using UG analysis(finite element analysis),Optimize the deign through the computer's assistant.
2 The whole machine is in sheet plate welded structure, with internal stress eliminated by vibration aging technology, high strength and good rigidity of machine.
3.. Mechanical stopper in oil cylinder, typical of high feedback precision for position of gliding block ,accurate and stable operation, good synchronizing performance ,and high repeated positioning precision of gliding block.
4. With Germany skill to avoid inner reaction.
5. The whole frame remove rust by sand paper, with antirust.
B .feature or characteristic.
1. Assistant Tooling Set on work table, make tooling adjustment easier
2. Rolling material support make operation easier
3.Indication by indicator is provided for adjustment of blade clearance, for a handy and prompt adjustment.
4.The adoption of four-side edge shearing blade prolongs the service life of blade.
5. Alignment device with lighting and control device for shearing stroke are set, with a handy and prompt adjustment.
6. The rear stopper is fitted with electric adjustment and manual adjustment devices, and digital display device is available for display of size of stopper and times of shearing.
C .Hydraulic system
1.Advanced hydraulic integrated valve block is employed, and the pipeline connection is minimized in a compact structure, typical of excellent rigidity and stability.
2.Forging material System: See Operate Manual
D. Electric control system
1. The electrical component and material meet the international standard, safe and long-lived.
2,The machine is with AC380V,50HZ and the control loop is with AC220V. 24V for Backguage controlling, 6V for indication Light,24V for other component.(According to customer requirements changes)
3. Electric box on left side. The operated buttons are on the machine's button table. The electrical switch, indicator lights are in the electrical case.
E . Front .Backguage
1.Frontgauge:Setting on table, with indicator, adjust stopper.
2.Backguage:Setting on tooling set, swing with up-tooling set, driven by 0.55KW Electric Motor. The rear stopper is fitted with electric adjustment and manual adjustment devices ,and digital display device is available for display of size of stopper and times of shearing.
F. Parts of supply list
High-Performance Hydraulic Shearing Machine for Sheet Metal Fabrication

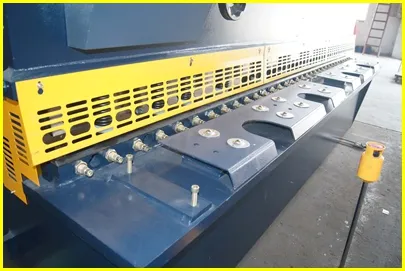

Working table with fence

High-Performance Hydraulic Shearing Machine for Sheet Metal Fabrication

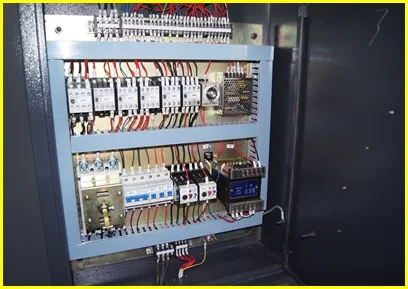

Electric components SIMENS
High-Performance Hydraulic Shearing Machine for Sheet Metal Fabrication

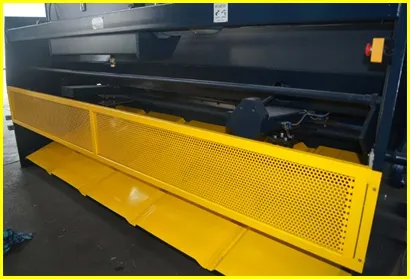

Back fence and material slide support board

No.	Name		Unit	25*3200
1	Max. thickness of plate		mm	25
2	Max. width of plate		mm	3200
3	Tensile strength		N/m m2	450
4	Shear angle			3°
5	Pole distance		mm	3465
6	Max back gauge range		mm	750
7	Stroke times		times/min	5
8	Blade length		mm	3300
9	Gear Pump	Model		NT Series
10		Flow	L/min	63
11		Pressure	MPa	31.5
12	Main motor		KW	37
