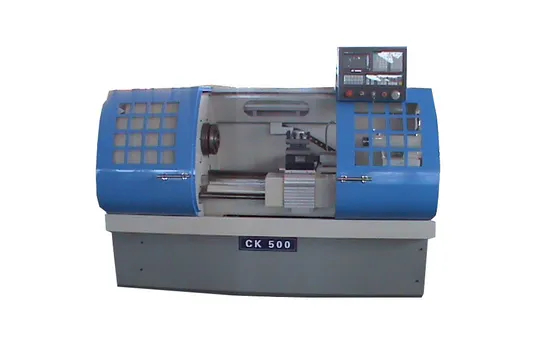

Horizontal Lathe Machine with Large Spindle Hole

Customization:	Available
Type:	Floor Lathe
Processing Accessory:	Chuck CNC Lathe

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

CK500

Guide Rail

Horizontal Guide Rail

Tool Holder

Double-tool Holder CNC Lathe

Power Source

Hydraulic Pressure

Controlling Mode

CNC

Automatic Grade

Automatic

Setting Mode

Floor-type

Precision

High Precision

Certification

GS, CE, RoHS, ISO 9001

Condition

New

Max Dis of Workpiece

500mm

Transport Package

Wood Case

Specification

CE Standard

Trademark

ALUKE

Origin

China

HS Code

8458910000

Production Capacity

200 Sets/Month

Product Description

They can realize automatic control. They can finish all kinds of turning inwhirling surfaces automaticiy such as the inner circle and excircle of hardwares, And surface kerbens, any conical surfaces and spherical surfaces. They also can complete many manufacturing procedure, including all kinds of metric syetem and British measurement columns and taper screw threads etc. At the same time, they have the self-contained function of S. T. M and can send out and receive many kinds of informations, control the process of automatic machining.

Model	CJK500	CK500
Max.swing over bed	500mm
Max.swing over tool-post	280mm
Max.length of the work - piece	1000mm , 1500mm,2000mm
Range of the speed	21 - 1500r/min	43 -430r/min 170 - 1700r/min 170- 1700r/min
Spinde bore	φ85mm
Table of bore in spinde	1;20
Rapid traverse rate	X;3000mm/min Z:6000mm/min X;3800mm/min Z:7600mm/min
Min.feed unit	X:0.0005mm Z:0.001mm	X:0.0005mm Z:0.001mm
Feed motor	Stepper motor	Servo motor
Main motor power	7.5KW	7.5kw
CNC system	GSK928TC GSK980TD GSK980TA (Also change the system according to the user’s option)
Tool post	4 position
Net weight	2.3T
Overall D imensions(Lengh×Width×Height)	2655×1520×1860mm
