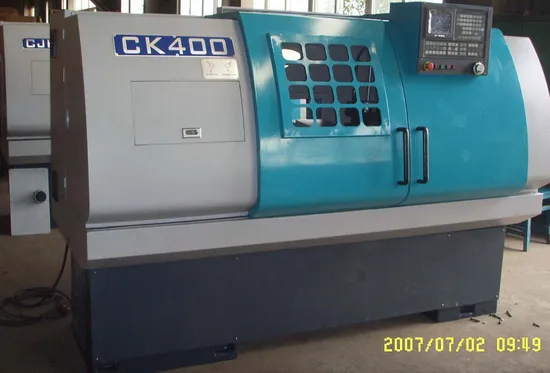

Pipe Thread CNC Lathe, CNC Oil Country Lathe

Customization:	Available
Type:	Horizontal Lathe
Processing Accessory:	Centre CNC Lathe

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

CK400

Guide Rail

Horizontal Guide Rail

Tool Holder

Double-tool Holder CNC Lathe

Power Source

Hydraulic Pressure

Controlling Mode

CNC

Automatic Grade

Automatic

Setting Mode

Floor-type

Precision

High Precision

Certification

GS, CE, RoHS, ISO 9001

Condition

New

Max Workpiece Diameter

400mm

Transport Package

Wooden Box

Specification

CE Standard

Trademark

ALUKE

Origin

China

Production Capacity

200 sets/month

Product Description

They can realize automatic control. They can finish all kinds of turning inwhirling surfaces automaticiy such as the inner circle and excircle of hardwares, end surface kerbens, any conical surfaces and spherical surfaces. They also can complete many manufacturing procedure, including all kinds of metric syetem and British measurement columns and taper screw threads etc. At the same time, they have the self-contained function of S. T. M and can send out and receive many kinds of informations, control the process of automatic machining.

Model	CJK400B	CK400
Max.swing over be	d 400mm
Max.swing over tool-post	220mm
Max.length of the work - piece1000mm
Range of the speed	200 - 2000r/min	46 - 460r/min 200-2000r/min
Spinde bore	φ52mm
Table of bore in spinde	MT- 6
Rapid traverse rate	X;3000mm/min Z:3000mm/min	X;3000mm/min Z:6000mm/min
Min.feed unit	X:0.0005mm Z:0.001mm	X:0.0005mm Z:0.001mm
Feed motor	Stepper motor	Servo motor
Main motor power	5.5kw
CNC system	GSK928TC GSK980TD (Also change the system according to the user’s option)
Tool post	4Position
Net weight	2T
Overall dimensions(L×W×H)	2330×1150×1680mm
