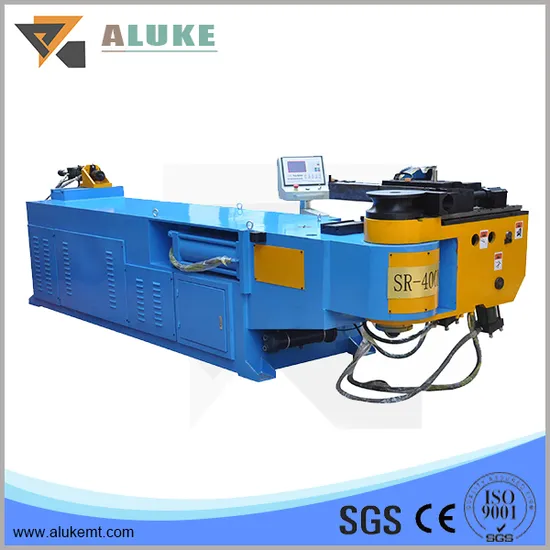

Hydraulic Electric Bending Machine for Square Tube Pipe

Customization:	Available
Condition:	New
Certification:	CE, ISO 9001:2000, ISO 9001:2008, EPA

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

DW89NC

Automation

Automatic

Type

Pipe and Tube Bending Machine

Max Bending Capability

89X8

Max Bending Radius

R350

Min Bending Radius

According to Pipe Diameter

Working Material

Metal Pipe

Application

Machinery & Hardware, Medical, Beverage

Type for Pipe and Tube Bending Machine

Digital Pipe Bender

Transport Package

Wooden Case

Specification

CE Standard

Trademark

ALUKE

Origin

China

HS Code

8462

Production Capacity

120 Set/Month

Product Description

Hydraulic Pipe Bending Machine

Product Description
High performance single-head hydraulic pipe bending machine, NC control, multi-groups program and multi-angles setting, makes your operation easy and convenient, widely used in blast pipe, furniture and other metal pipes processing.

III.Characters:
1. Operate by NC, imported electric and hydraulic elements.
2. English showing and conversational operation.
3. It can adjust speed in each bend and the bending precision is high
4.16 groups of bending information can be stored. Multiple angles can be finished once.
5. The foot switches with functions of automatic start, emergency stop and resuming.
The safety is high.
6. Delicate design of the bending head makes the bending space large.
7. Suitable Materials: steel pipe, stainless steel pipe, copper pipe, aluminum pipe and others.

Specification/Model	Unit	DW89NC	Remark
Max bending capability	mm	Φ89×8	1. The Minimum bending diameter based on the pipe diameter 2.The Max bending diameter can according to the customer's requirement 3.The Max length of mandrel can according to customer's requirement
Max bending radius	mm	R450
Min bending radius	mm	According to pipe diameter
Max bending angle	Degree	190
Max effective distance of mandrel	mm	4200
Control System		NC Control
Max elbow bend pipe	Unit	16
Max storable sections	Unit	16×16
Motor power	KW	11
Max. Hydraulic Pressure	Mpa	14
Hydraulic System Control		Electromagnetic Valve
Oil Tank Capacity	L	260
Measurement	mm	4550×1300×1300
Weight of Machine	Kg	3500
