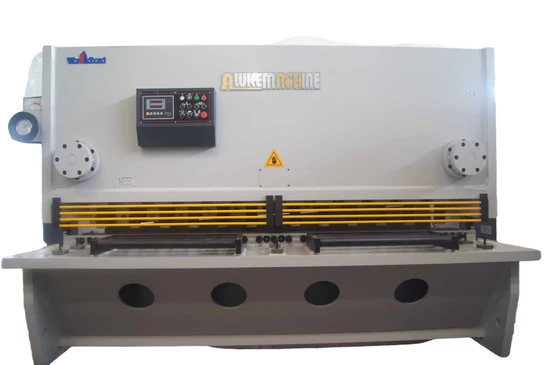

Hydraulic Guillotine Shearing Machine Q11y 16X2500

Customization:	Available
Automation:	Semi-automatic
Certification:	ISO 9001:2008, CE, ISO 9001:2000

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

Q11Y 16X2500

Cutting Thickness:16mm

Width:2500mm

Application

Machinery & Hardware

Type for Cutting Machine

Hydraulic Cutting Machine

Type for Fold-Bending Machine

Guillotine Shearing Machine

Transport Package

Steel Tray

Specification

International Standard

Trademark

ALUKE

Origin

China

HS Code

846239

Production Capacity

150 Sets/Month

Product Description

Character
1. All welded structure, vibrating treatment of ageing for removal of internal stress, with good rigidity stability
2.Integrated hydraulic transmission system, with good reliability
3.Triple support rolling guide rail to eliminate gaps of support and enhance shearing quality
4.Back gauge use intelligent digital display device, shear quantity can be automatic counted, distance of back gauge can be set according to requirements of customers
5.Clearance between shearing blades adjusted by hand wheel to be quick, accurate and convenient
6.Rectangular blades with four cutting edges to prolong working life, adjustable shearing angle to reduce deformation of the sheet
7.Upper blade holder has inward tilting structure to facilitate material feed in and also enhance accuracy of the work piece
8.Function of shearing in sections, function of lamplight illume device
9.Optional rear material holding device
10. Parts of supply list

Hydraulic Guillotine Shearing Machine Q11y 16X2500

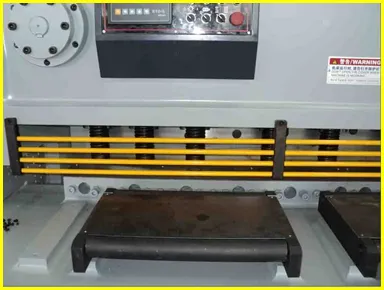

Front Sheet

Hydraulic Guillotine Shearing Machine Q11y 16X2500

Backgauge Motor

Hydraulic Guillotine Shearing Machine Q11y 16X2500

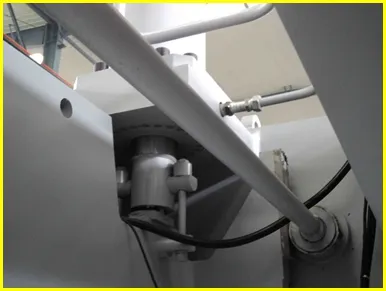

Hydraulic Cylinder

Max. thickness of plate	16mm
Max. width of plate	2500mm
Workbench thickness	50mm
Wallboard thickness	50mm
Anti-strength of plate	450N/mm2
Shear angle	0.5° -2.5°
Back gauge range	750mm
Stroke times	8-20times/min
Throat depth	100mm
Blade length	2, 600mm
Main motor	18.5KW
Oil pump	NT4-G 40F
Dimension(LxWxH)	3000× 1900× 2300 (mm)
Machine weight	9.6T
