Hydraulic Guillotine Shearing Machine QC11y-16X4000

Customization:	Available
Certification:	CE, ISO 9001:2000
16*3200:	Size

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

QC11Y-16x4000

Application

Machinery & Hardware

Transport Package

Steel Tray

Specification

International Standard

Trademark

ALUKE

Origin

China

HS Code

846239

Production Capacity

120 Sets/Month

Product Description

Character
1. All welded structure, vibrating treatment of ageing for removal of internal stress, with good rigidity stability
2.Integrated hydraulic transmission system, with good reliability
3.Triple support rolling guide rail to eliminate gaps of support and enhance shearing quality
4.Back gauge use intelligent digital display device, shear quantity can be automatic counted, distance of back gauge can be set according to requirements of customers
5.Clearance between shearing blades adjusted by hand wheel to be quick, accurate and convenient
6.Rectangular blades with four cutting edges to prolong working life, adjustable shearing angle to reduce deformation of the sheet
7.Upper blade holder has inward tilting structure to facilitate material feed in and also enhance accuracy of the work piece
8.Function of shearing in sections, function of lamplight illume device
9.Optional rear material holding device
10. Parts of supply list

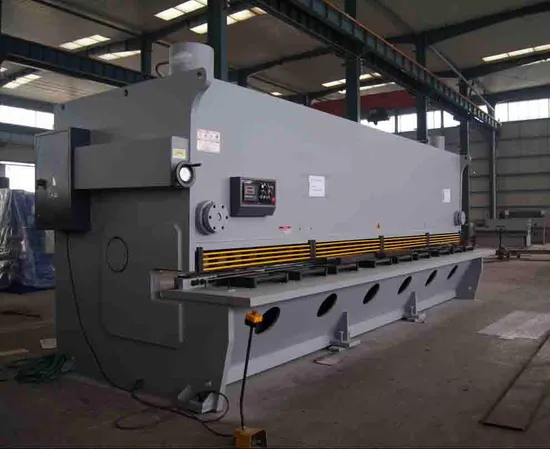

Hydraulic Guillotine Shearing Machine QC11y-16X4000

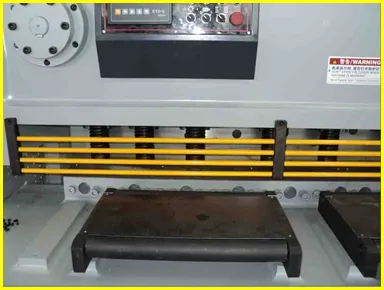

Front Sheet

Hydraulic Guillotine Shearing Machine QC11y-16X4000

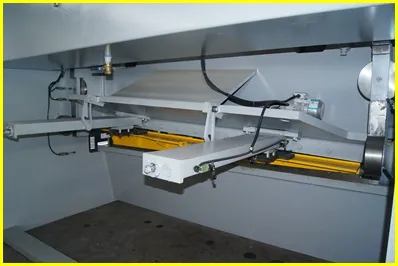

Rear View

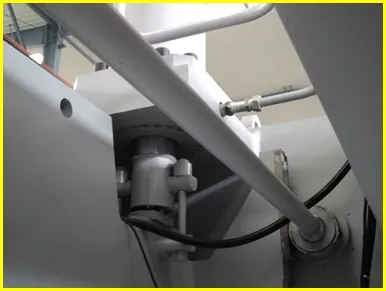

Hydraulic Cylinder

Order	Name			Value	Unit	Remarks
1	Main data	Max cutting thickness		16	mm	450/mm2
2	Main data	Max bending width		4000	mm
3	Basic data	Cutting angel		0.5-2.5°
4		Throat depth		100	mm
5		Stroke times		5-10	1/min
6	Other data	maximum travel of up tool slide		230	mm
7		Max cutting strength		800	KN
8		Max pressure of hold downs		160	KN
9		Max work pressure of hydraulic pressure		240	Mpa
10		Distance of backguage		10-900	mm
11		Main motor	Rotate speed	1470	r/min
12			model	Y160L-6	/
13			power	22	KW
14		Oil pump	Rotate speed	63	r/min
15		Oil pump	Model	NT3G-50F	/
16		Dimension	L	4550	mm
17			W	2150	mm
18			H	2500	mm
19	Gross weight		15000		Kg
