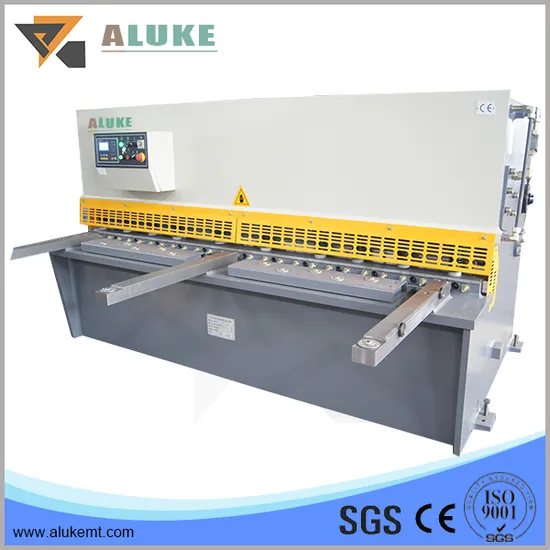

Hydraulic Swim Beam Shearing Machine
QC12Y 14X3200
Parameter of the machine:
| Item | Description | Parameter | Unit | Memory |
| 1 | Cutting Length | 3200 | mm |
|
| 2 | Max Cutting Thickness | 14 |
mm |
|
3 | Cutting Angle | 2°30′ | degree |
|
| 4 | No. of Forging Material | 10 | Piece |
|
| 5 | Speed of Stroke | 3-7 | Hypo/Min |
|
| 6 | Throat Depth | 200 | mm |
|
| 7 | Travel Of Backguage | 600 | mm |
|
| 8 | Motor Power | 18.5 | Kw |
|
Brand of Spare Parts:
| No | Item | Place of origin |
| 1 | Hydraulic system | America,Omega |
| 2 | Sealing | Japan NOK |
| 3 | Oil Pump | Famous brand in China |
| 4 | Electric Component | SIEMENS |
| 5 | Pipe connector | Germany EMB |
Deliever list:
(1).A Shearing Machine( including 1 set up and bottom blades)
(2).Accessories with machine
| 1 | Foundation bolts | 4 pieces |
| 2 | Adjusted bolt | 4 pieces |
| 3 | Oil gun | 1 piece |
| 4 | Gasket | 4 pieces |
| 5 | Recharging Nitrogen Tooling | 1 Set |
| 6 | O type sealing ring | 1 Set |
| 7 | Resultant sealing ring | 1 Set |
(3). Technical files with machine
| 1 | Packing list | 1 book |
| 2 | Certificates | 1 book |
| 3 | English instrument | 1 book |
Feature or characteristic.
1. Assistant Tooling Set on work table, make tooling adjustment easier
2. Rolling material support make operation easier
3.Indication by indicator is provided for adjustment of blade clearance, for a handy and prompt adjustment.
4.The adoption of four-side edge shearing blade prolongs the service life of blade.
5. Alignment device with lighting and control device for shearing stroke are set, with a handy and prompt adjustment.
6. The rear stopper is fitted with electric adjustment and manual adjustment devices, and digital display device is available for display of size of stopper and times of shearing.
Hydraulic system
1.Advanced hydraulic integrated valve block is employed, and the pipeline connection is minimized in a compact structure, typical of excellent rigidity and stability.
2.Forging material System: See Operate Manual
Electric control system
1. The electrical component and material meet the international standard, safe and long-lived.
2,The machine is with AC380V,50HZ and the control loop is with AC220V. 24V for Backguage controlling, 6V for indication Light,24V for other component.
3. Electric box on left side. The operated buttons are on the machine's button table. The electrical switch, indicator lights are in the electrical case.
VII, Front .Backguage
1.Frontgauge:Setting on table, with indicator, adjust stopper.
2.Backguage:Setting on tooling set, swing with up-tooling set, driven by 0.55KW Electric Motor. The rear stopper is fitted with electric adjustment and manual adjustment devices ,and digital display device is available for display of size of stopper and times of shearing.
