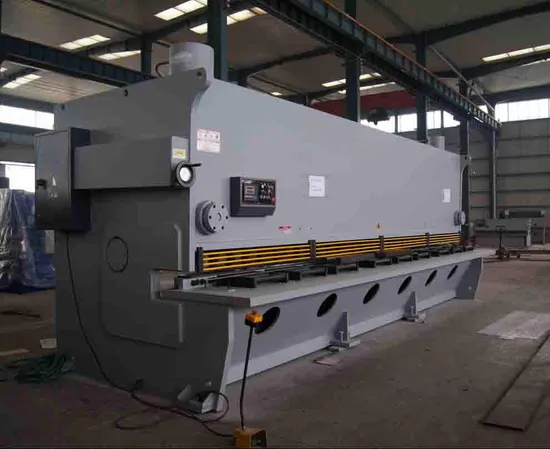

Nc Guillotine Shearing Machine (Q11Y 16X6100)

Customization:	Available
Cutting Thickness:	16mm
Cutting Width:	6100mm

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

Q11Y 16X6100

Transport Package

Steel Tray

Specification

International Standard

Trademark

ALUKE

Origin

China

HS Code

846239

Production Capacity

100 sets/month

Product Description

Character
1. All welded structure, vibrating treatment of ageing for removal of internal stress, with good rigidity stability
2.Integrated hydraulic transmission system, with good reliability
3.Triple support rolling guide rail to eliminate gaps of support and enhance shearing quality
4.Back gauge use intelligent digital display device, shear quantity can be automatic counted, distance of back gauge can be set according to requirements of customers
5.Clearance between shearing blades adjusted by hand wheel to be quick, accurate and convenient
6.Rectangular blades with four cutting edges to prolong working life, adjustable shearing angle to reduce deformation of the sheet
7.Upper blade holder has inward tilting structure to facilitate material feed in and also enhance accuracy of the work piece
8.Function of shearing in sections, function of lamplight illume device
9.Optional rear material holding device
10. Parts of supply list

Nc Guillotine Shearing Machine (Q11Y 16X6100)

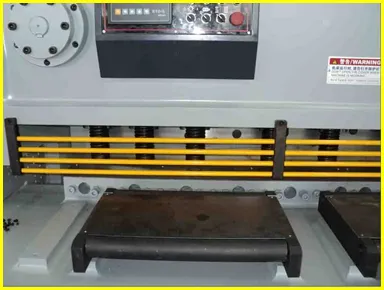

Front Sheet

Nc Guillotine Shearing Machine (Q11Y 16X6100)

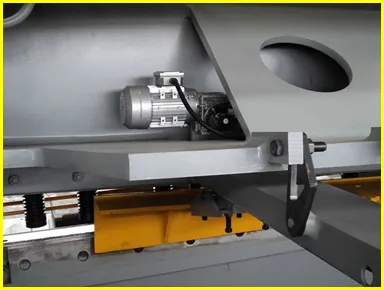

Backgauge Motor

Nc Guillotine Shearing Machine (Q11Y 16X6100)

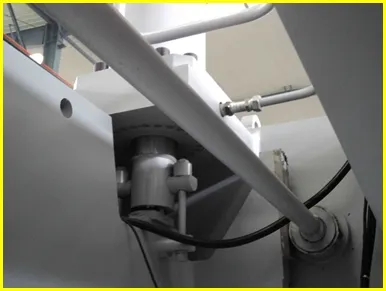

Hydraulic Cylinder

Item	Description	Parameter	Unit	Memory
1	Cutting Length	6100	mm
2	Max Cutting Thickness	16	m m
3	Cutting Angle	2 ° 30 ′	dgeree
4	No. of Forging Material	18	Piece
5	Speed of Stroke	3-7	Hypo/Min
6	Throat Depth	200	m m
7	Travel Of Backguage	1000	m m
8	Motor Power	22	Kw
9	Machine Dimension LXWXH	6900 * 2800*2700	M m
10	Machine Weight	33	T
