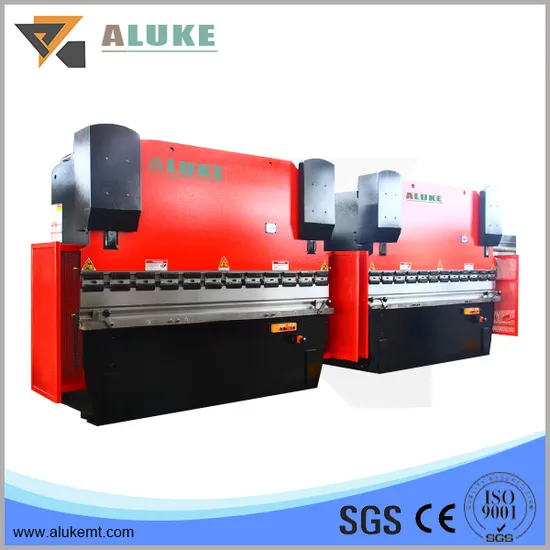

2-We67k Steel Plate Hydraulic Tandem Bending Machine

Customization:	Available
Condition:	New
Certification:	CE, RoHS, ISO 9001:2000, ISO 9001:2008, CS

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

2-WE67K 1000T5000

Automation

Automatic

Type

Press Brake

Working Pressure

1000t

Working Width

5000mm

Working Material

Metal Plate

Power Supply

380V or Optional

Application

Machinery & Hardware, Chemical, Beverage

Type for Fold-bending Machine

CNC Fold-bend Machine

Transport Package

Steel Tray

Specification

International Standard

Trademark

ALUKE

Origin

China

HS Code

846229

Production Capacity

150 Sets/Month

Product Description

1.Functions

This machine is high-efficiency and high-precision in bending sheet metal. Using different kinds of upper and lower dies can bend all kinds of work pieces. One slider travel makes a sheet bending and the complicated shape work piece may be achieved through bending many times. When fitted with relevant equipments, it can be used to punch holes.

2.Overall structure

2.1 Using UG (finite element) analysis, through computer aid design, with nice appearance.

2.2 The machine structure is welded with steel plate, with sufficient strength and rigidity. The hydraulic drive prevents the machine from serious overload operation accidents caused by the change of sheet thickness or bad choice of lower die cavity. Additionally, this machine is also featured by the steadiness of work, convenience of operation, and reliable safety.

3.Parts of supply list

Tool clamping and Press Brake Die

Backgauge and Ball screw(Taiwan HIWIN)

Main electric elements(Siemens)

Item	Description		Value	Unite	Note
1	Stroke pressure		10000	KN
2	Worktable length		5000	mm
3	Worktable width		400	mm
4	Distance between uprights		4050	mm
5	Throat depth		600	mm
6	Ram Stroke		400	mm
7	Max open height between the worktable and Ram		820	mm
8	Max backguage distance		800	mm
9	Ram drive speed		70	Mm/s
10	Ram working speed		8	Mm/s
11	Ram return speed		70	Mm/s
12	Stopper adjust motor	Model	YS7134	/
		Power	550	W
		Rotary speed	1680	r/min
13	Oil pump main motor	Model	Y280s-6	/	B35
		Power	45	KW
		Rotary speed	1180	r/min
14	Backguage adjust motor	Model	YS-8026	/
		Power	0.55	KW
		Rotary speed	1440	r/min
15	Max working pressure of Hydraulic system		≥25	Mpa
16	Dimension LXWXH		500025004400	mm	Without front support dimension
17	Machine estimated weight		72	T
