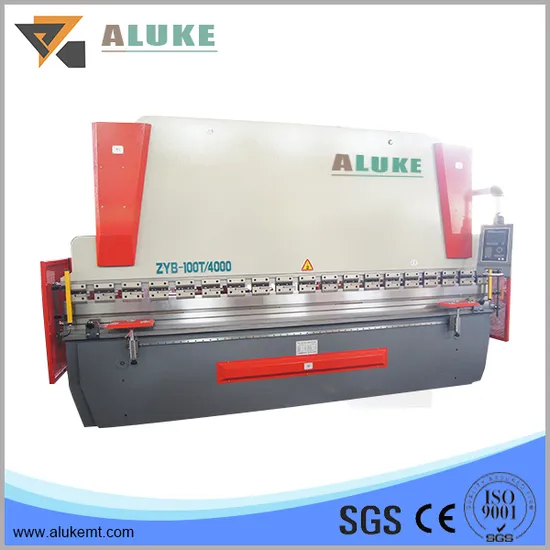

CNC Bending Machine for Stainless Steel

Customization:	Available
Condition:	New
Certification:	CE, ISO 9001:2000, ISO 9001:2008, EPA, CS

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

WC67Y-100T4200

Automation

Automatic

Suitable for

Stainless Steel

Type

Press Brake

Working Pressure

100t

Working Width

4200 mm

Working Material

Metal Plate

Power Supply

380V or Optional

Application

Machinery & Hardware, Food, Beverage

Type for Fold-bending Machine

CNC Fold-bend Machine

Transport Package

Steel Tray

Specification

CE Standard

Trademark

ALUKE

Origin

China

HS Code

846221

Production Capacity

150 Sets/ Month

Product Description

1.Functions

This machine is high-efficiency and high-precision in bending sheet metal. Using different kinds of upper and lower dies can bend all kinds of work pieces. One slider travel makes a sheet bending and the complicated shape work piece may be achieved through bending many times. When fitted with relevant equipments, it can be used to punch holes.

2.Overall structure

2.1 Using UG (finite element) analysis, through computer aid design, with nice appearance.

2.2 The machine structure is welded with steel plate, with sufficient strength and rigidity. The hydraulic drive prevents the machine from serious overload operation accidents caused by the change of sheet thickness or bad choice of lower die cavity. Additionally, this machine is also featured by the steadiness of work, convenience of operation, and reliable safety.

3.Parts of supply list

NO.	Item	Parameter value	Unit	Remark
1	Nominal force	1000	KN
2	Bending width	4200	mm
3	Slider travel	120	mm
4	Max opening height	385	mm
5	Distance between vertical poles	2955	mm
6	Depth of throat	300	mm
7	Travel times	8	T/M
8	Gear pump	10MCY14-1B
9	Max force of system	22	Mpa
10	Motor power	7.5	Kw
