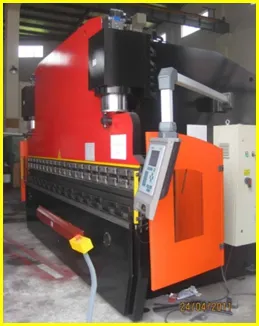

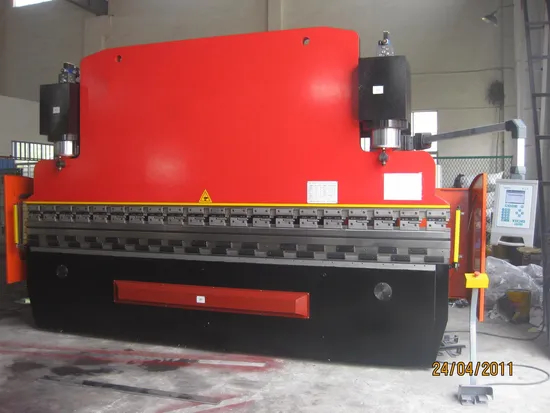

CNC Press Brake with Da52 Controller in High Accuracy

Customization:	Available
Condition:	New
Certification:	EPA, ISO 9001:2008, CE, CS, ISO 9001:2000

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

WC67K 300T4000 with DA52

Automation

Automatic

Type

Press Brake

Working Pressure

300t

Working Width

4000mm

Working Thickness

10mm

Process Material

Metal Plate

Application

Beverage, Textiles, Machinery & Hardware, Apparel

Type for Fold-bending Machine

CNC Fold-bend Machine

Transport Package

Steel Tray

Specification

International Standard

Trademark

ALUKE

Origin

China

HS Code

846229

Production Capacity

80 Sets/ Month

Product Description

1.Functions

This machine is high-efficiency and high-precision in bending sheet metal. Using different kinds of upper and lower dies can bend all kinds of work pieces. One slider travel makes a sheet bending and the complicated shape work piece may be achieved through bending many times. When fitted with relevant equipments, it can be used to punch holes.

2.Overall structure

2.1 Using UG (finite element) analysis, through computer aid design, with nice appearance.

2.2 The machine structure is welded with steel plate, with sufficient strength and rigidity. The hydraulic drive prevents the machine from serious overload operation accidents caused by the change of sheet thickness or bad choice of lower die cavity. Additionally, this machine is also featured by the steadiness of work, convenience of operation, and reliable safety.

3.Parts of supply list
CNC Press Brake with Da52 Controller in High Accuracy

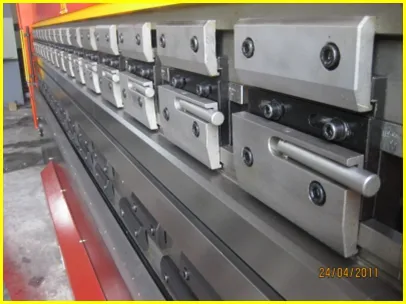

Tool clamping and Press Brake Die

CNC Press Brake with Da52 Controller in High Accuracy

Holland,DELEM DA52 system

CNC Press Brake with Da52 Controller in High Accuracy

Photoelectric protection (Optional)

Order	Name		Value		Unit	Remarks
1	Nominal pressure		3000		KN
2	Bending length		4000		mm
3	Poles distance		3150		mm
4	Throat depth		250		mm
5	Slider stroke		250		mm
6	Height of the workbench		800		mm
7	Width of the workbench		100		mm
8	Slider no-load speed		110		Mm/s
9	Slider feeding speed		10		mm/s
10	Slider return speed		100		mm/s
11	Main power		18.5		KW
12	CNC		DELEM DA52
13	Axis		3		pieces
14	Pump model		PGH4-21/040PE11VU2
15	Weight of oil box		510		L
16	Precision of backguage	X axis	Precision	±0.05	mm
			Stroke	700	Mm
			Max speed	100	mm/s
			Motor power	1	KW
