1.Functions

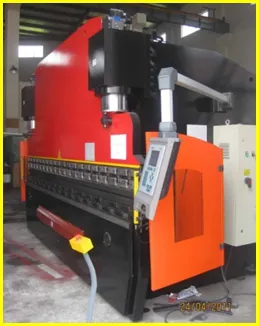

This machine is high-efficiency and high-precision in bending sheet metal. Using different kinds of upper and lower dies can bend all kinds of work pieces. One slider travel makes a sheet bending and the complicated shape work piece may be achieved through bending many times. When fitted with relevant equipments, it can be used to punch holes.
2.Overall structure
2.1 Using UG (finite element) analysis, through computer aid design, with nice appearance.
2.2 The machine structure is welded with steel plate, with sufficient strength and rigidity. The hydraulic drive prevents the machine from serious overload operation accidents caused by the change of sheet thickness or bad choice of lower die cavity. Additionally, this machine is also featured by the steadiness of work, convenience of operation, and reliable safety.
3.Parts of supply list

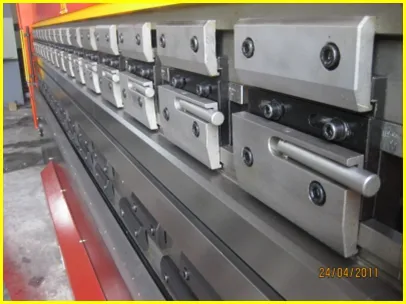

Tool clamping and Press Brake Die
Holland,DELEM DA52 system
Photoelectric protection (Optional) | Model | WC67K-1000T/5000 |
| Normal pressure | 10000 kN |
| Bending length | 5000 mm |
| Poles distance | 4260 mm |
| Throat depth | 600mm |
| Stroke of slider | 400 mm |
| The height of die-filling | 800mm |
| Slider fast down speed | 70mm/s |
| Slider return speed | 60mm/s |
| Slider working speed | 8mm/s |
| Main power | 2x45 KW |
| CNC | DELEM DA52 |
| Axles | 3+x |
| Stroke of backgauge(X) | 1000mm |
| Speed of backgauge(X) | 100mm/s |
