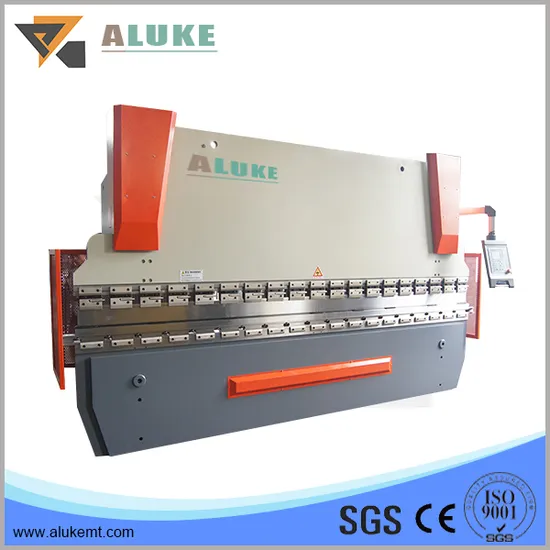

Hydraulic Bending Machine for Metal Product with OEM Features

Customization:	Available
Condition:	New
Certification:	CE, ISO 9001:2000, ISO 9001:2008

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

WC67Y 160T2500

Automation

Automatic

Type

Hydraulic Bending Machine, Pipe and Tube Bending Machine

Pressure

160t

Process Width

2500mm

Process Material

Metal Plate

System

Hydraulic

Application

Machinery & Hardware

Type for Fold-bending Machine

Hydraulic Fold-bend Machine

Transport Package

Steel Tray

Specification

International Standard

Trademark

ALUKE

Origin

China

HS Code

846229

Production Capacity

120 Sets/Month

Product Description

1.Functions

This machine is high-efficiency and high-precision in bending sheet metal. Using different kinds of upper and lower dies can bend all kinds of work pieces. One slider travel makes a sheet bending and the complicated shape work piece may be achieved through bending many times. When fitted with relevant equipments, it can be used to punch holes

2.Overall structure

2.1 Using UG (finite element) analysis, through computer aid design, with nice appearance.

2.2 The machine structure is welded with steel plate, with sufficient strength and rigidity. The hydraulic drive prevents the machine from serious overload operation accidents caused by the change of sheet thickness or bad choice of lower die cavity. Additionally, this machine is also featured by the steadiness of work, convenience of operation, and reliable safety.

3.Parts of supply list

Parameter of Hydraulic Press Brake: WC67Y 160T2500

Serial No. No	Item	Parameter	Unit	Remark
1	Pressure	1600	KN
2	Width	2500	mm
3	Stroke	200	mm
4	Height	320	mm
5	The distance between columns	2600	mm
6	Throat	320	mm
7	Speed	12	hpm
8	Pump	NT SERIES
9	Maximum Pressure	22	Mpa
10	Power	11	Kw

Brand and origin of the important spare parts:

1 Hydraulic system Taifeng (Sino-America)
2 Sealing pieces Japanese NOK
3 Oil pump Shanghai Kong Ting
4 Electrical pieces SIEMENZ
