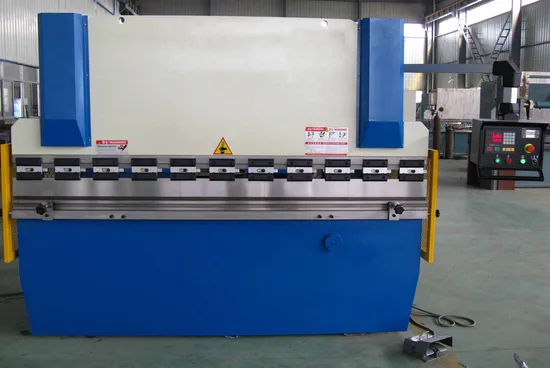

SERIES WC67K NC HYDRAULIC PRESS BRAKE ( Economical NC Braker)
* Mechanical stop, steel torsion bar to maintain synchronization, high precision.
* Equipped with special controller, automatic test and self-diagnosis. By Chinese E20 Unimercial Controlled system or imported Holland DELEM DA51 Control system.
* Programming a product simply consists of introducing the characteristics of the material to be bent, the dimensions of the product and the necessary tooling & die. The optimizing software serches for the best bending cycle.
* RAM stroke (Y) and backgauge (X, R, Z) are controlled by controller automatically, high productivity.
* Backgauge adopts ball-bearing screw and rolling guideway, quick speed and high repert positioning precision.
* Imports including linear transducer, pressure proportional valve and servo motor.
* The models are available in variety of tounge from 40 ton up 300ton and length from 2000mm up to 4000mm.
Any tailor-made are available on request.
NO.
| Item
| Parameter value
| Unit
| Remark
|
1
| Nominal force
| 5 00
| KN
|
|
2
| Bending width
| 25 00
| mm
|
|
3
| Slider travel
| 100
| mm
|
|
4
| Max opening height
| 275
| mm
|
|
5
| Distance between vertical poles
| 2000
| mm
|
|
6
| Depth of throat
| 220
| mm
|
|
7
| Travel times
| 8
| time/minute
|
|
8
| Axial plunger pump
| 1 0M
|
|
9
| Max force of system
| 22
| Mpa
|
|
10
| Motor power
| 5.5
| Kw
|
|
