We have an excellent technical team, our products in quality and quantity will make you satisfied, welcome to buy
 |
| Customization: | Available |
|---|---|
| Certification: | ISO 9001:2008, CE, ISO 9001:2000 |
| Automation: | Automatic |
| Quantity: | |
|---|---|

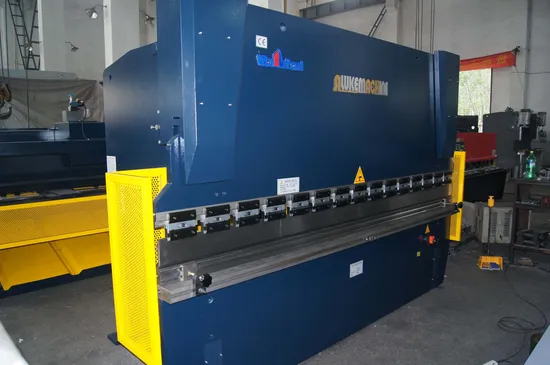

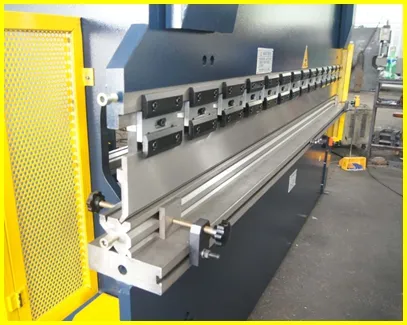

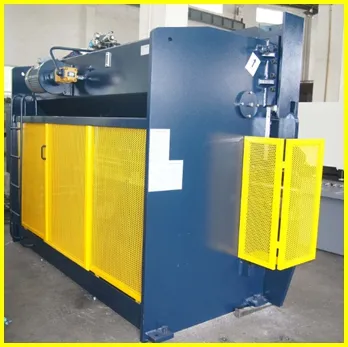

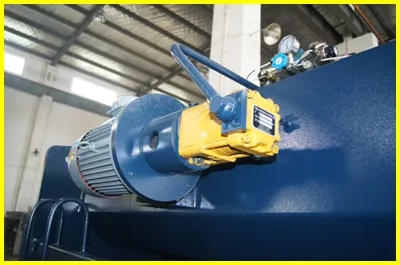

This high-efficiency and high-precision sheet metal bending machine can bend various workpieces using different upper and lower dies. It allows for bending complicated shapes through multiple bending processes and can be equipped to punch holes.
Supplied by Shanghai Aluke Equipment Co., Ltd.
Explore our Hydraulic Press Brake Wc67y-350t3200 for efficient tool clamping and die bending. Certified with ISO 9001:2008, CE, and ISO 9001:2000 standards. Automatic operation with steel tray packaging.
Discover our Hydraulic Press Brake Wc67y-350t3200, featuring ISO 9001:2008, CE certification, automatic operation, and steel tray packaging. Ideal for bending metal plates with precision.
| NO. | Name | Value | Unit | Notes | |
| 1 | Nominal pressure | 3500 | KN | ||
| 2 | Length of workbench | 3200 | mm | ||
| 3 | Width of workbench | 300 | mm | ||
| 4 | Poles distance | 2560 | mm | ||
| 5 | Throat depth | 400 | mm | ||
| 6 | Max stroke | 300 | mm | ||
| 7 | Max open | 500 | mm | ||
| 8 | Back gauge stroke | 600-800 | mm | ||
| 9 | Gear pump | model | NT4-40F | ||
| 10 | flow | 40 | L/min | ||
| 11 | pressure | 31.5 | MPa | ||
| 12 | Thickness of workbench | 70 | mm | ||
| 13 | Main power | 22 | KW | ||
| 14 | Slider speed | Up | 70 | mm/s | |
| Down | 70 | mm/s | |||
| Inflating | 10 | mm/s | |||
| 15 | Power | 380V/50Hz/3Phase(According to customer requirements changes) | |||
This high-efficiency and high-precision sheet metal bending machine can bend various workpieces using different upper and lower dies. It allows for bending complicated shapes through multiple bending processes and can be equipped to punch holes.
Supplied by Shanghai Aluke Equipment Co., Ltd.
Explore our Hydraulic Press Brake Wc67y-350t3200 for efficient tool clamping and die bending. Certified with ISO 9001:2008, CE, and ISO 9001:2000 standards. Automatic operation with steel tray packaging.
Discover our Hydraulic Press Brake Wc67y-350t3200, featuring ISO 9001:2008, CE certification, automatic operation, and steel tray packaging. Ideal for bending metal plates with precision.
| NO. | Name | Value | Unit | Notes | |
| 1 | Nominal pressure | 3500 | KN | ||
| 2 | Length of workbench | 3200 | mm | ||
| 3 | Width of workbench | 300 | mm | ||
| 4 | Poles distance | 2560 | mm | ||
| 5 | Throat depth | 400 | mm | ||
| 6 | Max stroke | 300 | mm | ||
| 7 | Max open | 500 | mm | ||
| 8 | Back gauge stroke | 600-800 | mm | ||
| 9 | Gear pump | model | NT4-40F | ||
| 10 | flow | 40 | L/min | ||
| 11 | pressure | 31.5 | MPa | ||
| 12 | Thickness of workbench | 70 | mm | ||
| 13 | Main power | 22 | KW | ||
| 14 | Slider speed | Up | 70 | mm/s | |
| Down | 70 | mm/s | |||
| Inflating | 10 | mm/s | |||
| 15 | Power | 380V/50Hz/3Phase(According to customer requirements changes) | |||
