We have an excellent technical team, our products in quality and quantity will make you satisfied, welcome to buy
 |
| Customization: | Available |
|---|---|
| Condition: | New |
| Certification: | EPA, ISO 9001:2008, CE, CS, ISO 9001:2000 |
| Quantity: | |
|---|---|

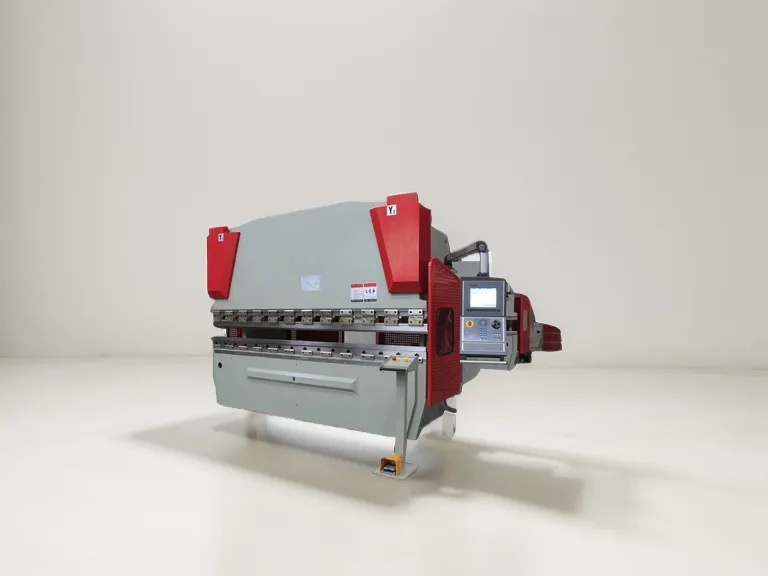

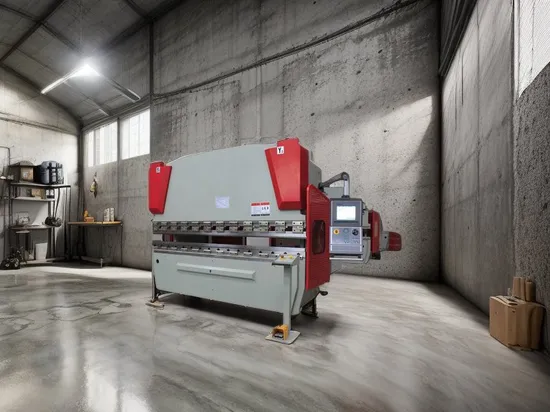

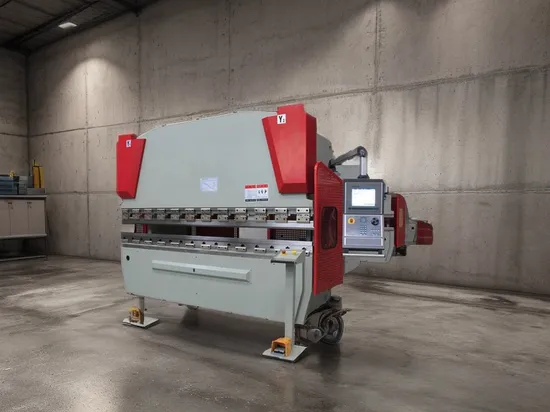

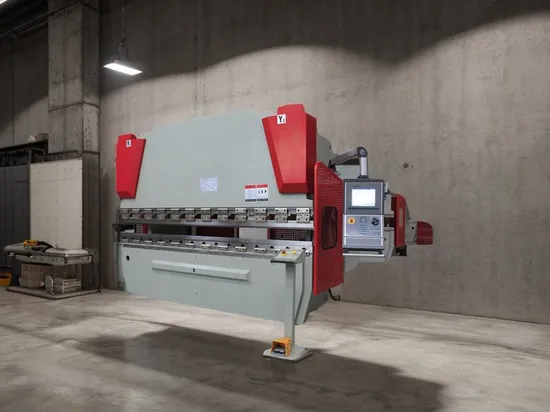

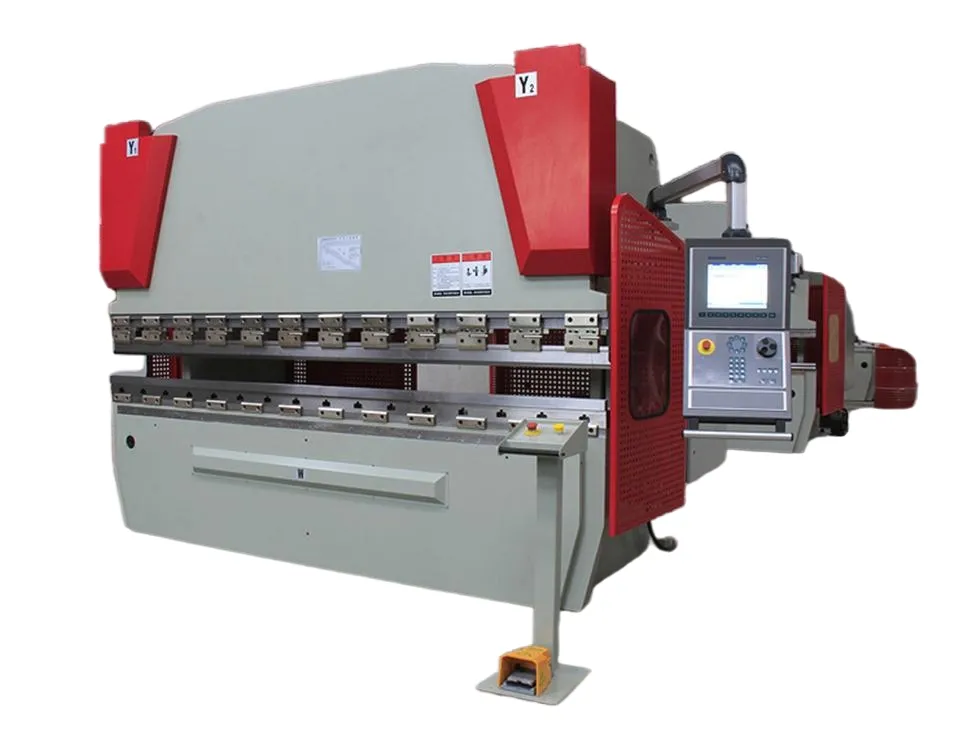

Discover the CNC Press Brake with Da66we by Shanghai Aluke Equipment Co., Ltd. in China. This hydraulic bending machine offers automatic operation and is certified with EPA, ISO 9001:2008, CE, and CS.
| No. | Name | Value | Unit | 100T3200 | ||
| 1 | Nominal pressure | 1000 | KN | |||
| 2 | Length of workbench | 3200 | mm | |||
| 3 | Width of workbench | 180 | mm | |||
| 4 | Poles distance | 2600 | mm | |||
| 5 | Throat depth | 400 | mm | |||
| 6 | slide stroke | 200 | mm | |||
| 7 | Max open | 380 | mm | |||
| 8 | Height of the workbench | 830 | mm | |||
| 9 | Back gauge stroke | 410 | mm | |||
| 10 | Fast down speed | 120 | mm/s | |||
| 11 | Return speed | 10 | mm/s | |||
| 12 | Working speed | 100 | mm/s | |||
| 13 | CNC system | DELEM DA66WE | ||||
| 14 | Compensation cylinders | 3 | piece | |||
| 15 | Number of controlled axes | 6+1(Y1\Y2\X\R\Z1\Z2+W) | ||||
| 16 | Precision of back gauge | X-axis | Stroke | 500 | mm | |
| 17 | Precision | ±0.05 | mm | |||
| 18 | speed | 200 | mm/s | |||
| 19 | Repeat positioning accuracy | ±0.015 | mm | |||
| 20 | R-axis | Stroke | 200 | mm | ||
| 21 | Precision | ±0.1 | mm | |||
| 22 | speed | 200 | mm/s | |||
| 23 | Repeat positioning accuracy | ±0.05 | mm | |||
| 24 | Z-axis | Stroke | 2500 | mm | ||
| 25 | Precision | ±0.1 | mm | |||
| 26 | speed | 200 | mm/s | |||
| 27 | Repeat positioning accuracy | ±0.05 | mm | |||
| 28 | Main power | 7.5 | KW | |||
| 29 | power | 220V/380V.60HZ.3PHASE(According to customer requirements changes) | ||||
