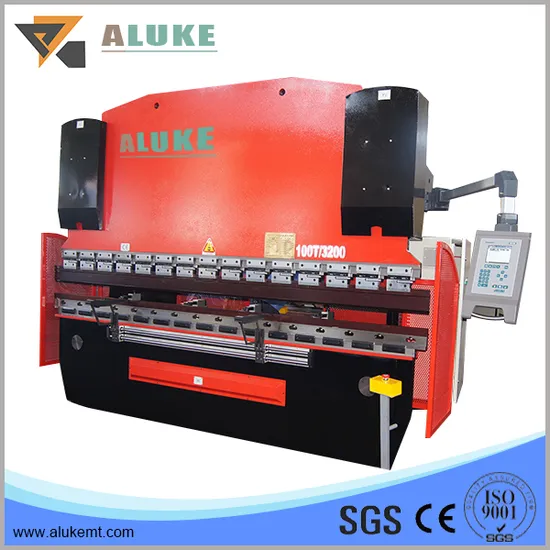

Semi-Automatic Bending Machine with E200d Nc Controller

Customization:	Available
Condition:	New
Certification:	CE, RoHS, ISO 9001:2000, ISO 9001:2008, CS

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

WC67K 500T6000

Automation

Semi-Automatic

Type

Press Brake

Working Pressure

500t

Working Width

6000mm

Working Material

Metal

Power Supply

380V or Optional

Application

Machinery & Hardware, Beverage

Type for Fold-bending Machine

CNC Fold-bend Machine

Transport Package

Steel Tray

Specification

International Standard

Trademark

ALUKE

Origin

China

HS Code

84621990

Production Capacity

80 Sets/Month

Product Description

1.Functions

This machine is high-efficiency and high-precision in bending sheet metal.
Using different kinds of upper and lower dies can bend all kinds of work pieces.
One slider travel makes a sheet bending and the complicated shape work piece may be achieved through bending many times.
When fitted with relevant equipments, it can be used to punch holes.

2.Overall structure

2.1 Using UG (finite element) analysis, through computer aid design, with nice appearance.

2.2 The machine structure is welded with steel plate, with sufficient strength and rigidity.
The hydraulic drive prevents the machine from serious overload operation accidents caused by the change of sheet thickness or bad choice of lower die cavity.
Additionally, this machine is also featured by the steadiness of work, convenience of operation, and reliable safety.
3.Parts of supply list

Tool clamping and Press Brake Die

Backgauge and Ball screw(Taiwan HIWIN)

Main electric elements(Siemens)

NO.	Item	Parameter value	Unit	Remark
1	Nominal force	5000	KN
2	Bending width	6000	mm
3	Slider travel	320	mm
4	Max opening height	590	mm
5	Distance between vertical poles	5000	mm
6	Depth of throat	400	mm
7	Travel times	2.5	T/M
8	Internal Gear Pump	NT series
9	Max force of system	32	Mpa
10	Motor power	45	Kw
